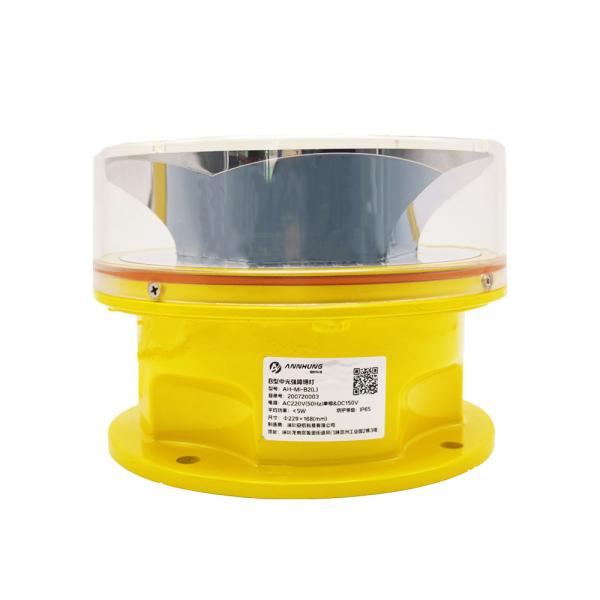

GPS Sync 2000cd Intensity 360 Degree Horizontal Output Aviation Obstruction Light Aircraft Warning Light

Available Colors : Red

Flash Characteristics : 20-60FPM - Type B (factory setting: 20FPM)

Operating Voltage : DC(12V, 48VDC) or AC(110-240VAC) or others

Light Source : LED

LED Life Experience(hours) : >100,000

Vertical Divergence(degrees) : 3

Intensity(cd) : ≥2000cd

Brand Name : ANNHUNG

Model Number : AH-MI-B2(L)

Certification : ICAO CE

Place of Origin : China

MOQ : 1

Payment Terms : T/T,Western Union,

Delivery Time : 7-15 work days

Packaging Details : carton

Horizontal Output(degrees) : 360

Contact Now

Medium Intensity Type B L864 Aviation Obstruction Light GPS Sync Flashing
AH-MI-B2(L) LED Medium-intensity Aviation Obstruction Light

This LED Medium-intensity Type B L864 Aviation Obstruction Light flashes red and is designed for marking the top of obstacles with heights exceeding 45 meters. Utilizing ultra-high intensity CREE LEDs for the light source ensures long lifespan and optimal performance. A self-designed reflector converges light to achieve standard light intensity with minimal power consumption.

Description Parameter
Light Source LED
Flash Characteristics 20fpm
Operation Mode Dusk-to-dawn Automatically as standard
LED Life Experience (hours) >100,000
Operating Voltage 110-240VAC, 48VDC, or others
Power (W) 40W
Mounting 190×190×θ12
Dimension (mm) 229×229×168
Weight (kg) 2.5
Ambient Temperature (°C) -55~70
Humidity 10%-95%RH (No condensation)
Wind Speed 240Km/h
Waterproof IP66
Options Available Bird deterrent spike
Compliance
  • ICAO Annex 14 Volume 1, Seventh edition, 2016, table 6.3 Medium Intensity Type B Obstruction Light
  • FAA L-864
Features
Electrical
  • CREE ultra high intensity LED as light source saving power consumption and maintenance compared to incandescent or halogen lamps
  • Power supply available in DC (12V, 24V, 48V) or AC (110-240VAC)
Physical
  • Unique design and UV protected polycarbonate reflector for converging light
  • UV protection powder coated bright yellow color base for better visibility
System Design
  • Built-in photocell for day/night operation (dusk to dawn operation)
  • Surge and lightning protection
Optional
  • Dry contact Alarm output for remote monitoring
  • User adjustable flashing rate (20, 30, 40, 60 flashes/minute)
  • GPS synchronization
Application

AH-MI-B2 medium-intensity light is used on the top of high-rise buildings, high chimneys, marking towers (Telecom, GSM, Microwave & TV), high poles, tower cranes, wind turbines, and other structures when the obstacle height is 45-105 meters. Typically works in conjunction with low intensity lights installed on lower positions.

GPS Sync 2000cd Intensity 360 Degree Horizontal Output Aviation Obstruction Light Aircraft Warning Light
